Agricultural Machinery HMI Integration
Application Environment
Proposed application: an in-cab operator terminal for a tractor or harvesting machine.
The proposed terminal sits inside a machine cab. Define sunlight through cab glazing, dusty handling, glove use and movement during operation. Distinguish this installation from an externally mounted terminal exposed directly to rain and wash-down.

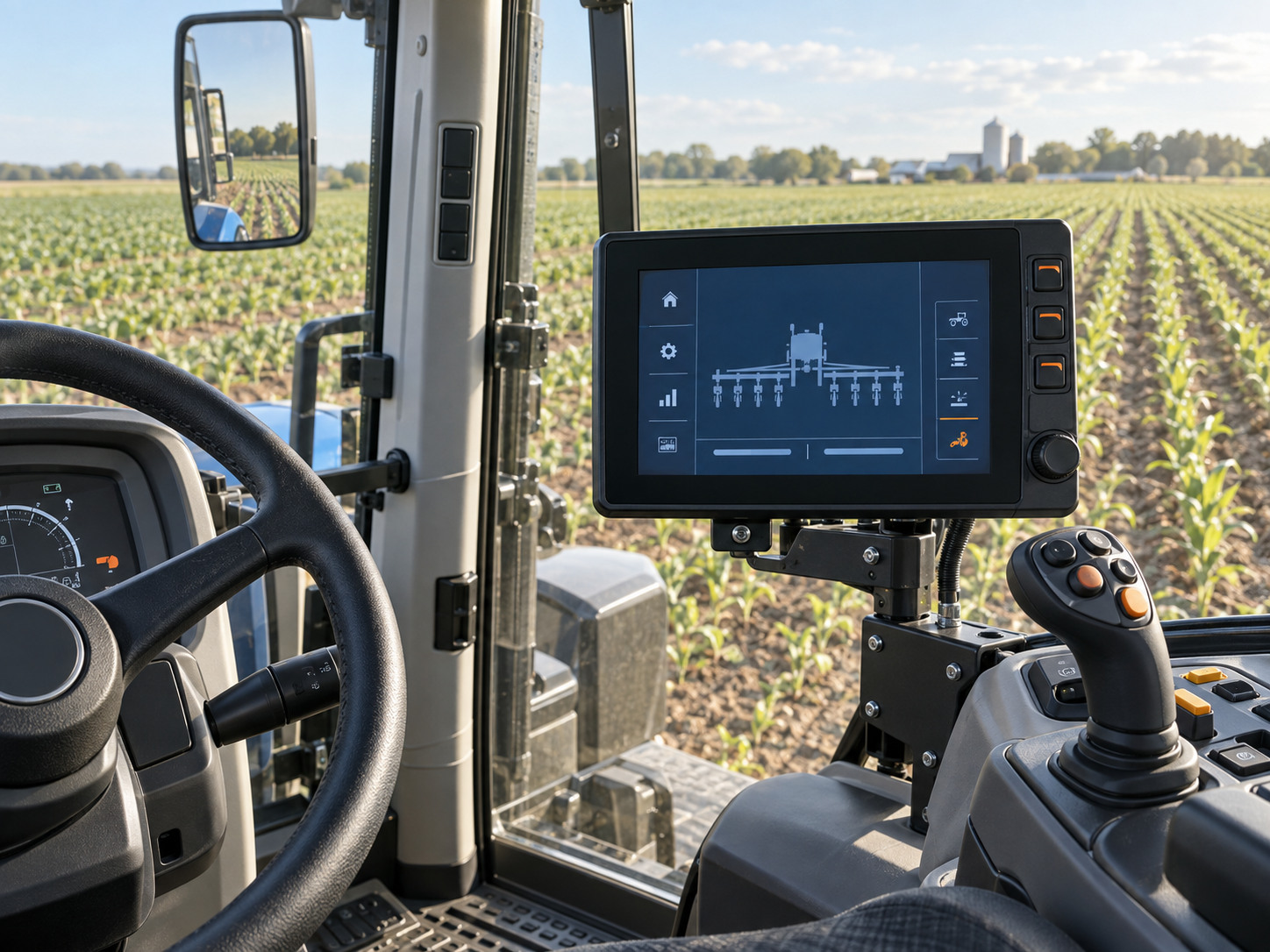

AI-generated application illustration.
Temperature & front protection
Agree operating and storage temperatures for the machine location, including a parked cab. Any requested front IP65 performance must be validated for the selected installation; it does not establish pressure-wash resistance.
02 / APPLICATION CHALLENGES
Display & HMI Challenges
Reading while the machine moves
Viewing angle, reflections and mounting position must support the operator without assuming that a higher backlight setting resolves every condition.
Gloves and dust on the surface
Evaluate the actual glove, touch target sizes and cleaning method. Consider a pressure-actuated touch option or a qualified glove-capable PCAP configuration.
Mounting and cable restraint
The frame, display support and connectors need a defined retention arrangement for the machine’s vibration conditions.
03 / INTEGRATION STRUCTURE
Recommended Integration Approach
Task-based input selection
Choose touch technology around the intended glove and interaction. Add physical keys where the equipment design calls for repeated direct input.
Cab optical stack
Coordinate the LCD, cover finish and optional bonding with the cab viewing position and sunlight direction.
Supported assembly
Define a carrier, front seal, fixing points and protected cable routing for the machine mount; evaluate environmental loads on the complete installed unit.
04 / DELIVERY FORM
Typical Delivered Assembly
Proposed delivery: an integrated display/touch terminal or front-panel module for the machine manufacturer.
• LCD and selected touch technology with its controller
• Project-specific front panel and optional physical-key arrangement
• Mounting structure, specified seals and agreed interconnects
Machine-control software, positioning receivers, vehicle networks and agricultural equipment approvals are separate from this proposed assembly scope.
