01 / ENGINEERING DEVELOPMENT
Industrial HMI Design & Engineering Development
Industrial HMI design turns your initial drawings and display requirements into a coordinated layout for optical, mechanical and electrical integration.

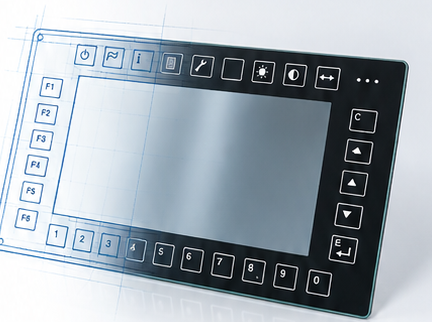

Illustrative engineering concept
Customer Input
Engineering Development
Approved Production Layout
Start your industrial HMI design review

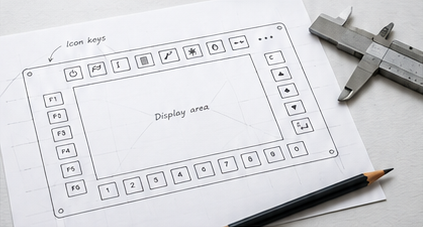

A preliminary sketch is enough to begin the review.
For industrial HMI design, share the panel opening, mounting references, display model and available rear space. Include the touch or keypad layout, connector locations and cable access. Note any dimensions that are fixed by the host equipment, together with the intended operating environment. Our project brief checklist helps organize these inputs.
- Initial concept or preliminary drawings
- LCD model or display size
- Overall dimensions and mounting space
- Interfaces and power requirements
- Operating environment and application needs
Industrial HMI design: connect every interface
01 Review the requirements
Confirm the application, display format, installation envelope and interface needs.
02 Develop the layout
Define the product layout, optical stack-up and component positions.
03 Refine the integration
Resolve mechanical structure, connector access, cable paths and assembly feasibility.
04 Review and confirm
Complete the design-for-manufacture review and confirm engineering drawings with your team.
A clear engineering package.
The reviewed industrial HMI design provides the basis for component selection, HMI enclosure manufacturing and display and HMI assembly.
- Refined product layout
- Defined optical stack-up
- Mechanical design recommendations
- Component specifications
- Assembly plan
- Confirmed production drawings
Deliverables and approval criteria are agreed for each project.
Agree the drawing revision, component interfaces and design-for-manufacture review points before release. Identify the critical dimensions and checks that will support quality assurance and final verification. Structural integration is our scope; mainboard design is not included.
Compare application planning needs for agricultural machinery, EV charging cabinets and railway consoles. Then record the relevant constraints in the project brief checklist.
NEXT / 02
Component Selection & Sourcing
Use the approved layout to select compatible components.
Bring your concept. Let’s define the design.
Share a sketch, an LCD model or your application requirements.
